Configure an ESP32 template project

Create a starter project with esp-generate#

Before starting, complete the base Rust environment setup, then finish the ESP32 Rust setup.

After completing those steps, create or open a project directory and run the following command in a terminal. You can also run esp-generate by itself and follow its prompts.

esp-generate --chip=esp32c3 esp32c3_embassy_dht11_demo

The command is made up of these parts:

esp-generate # invoke the generator
--chip=esp32c3  # select the chip
esp32c3_embassy_dht11_demo  # project name; snake_case is recommended

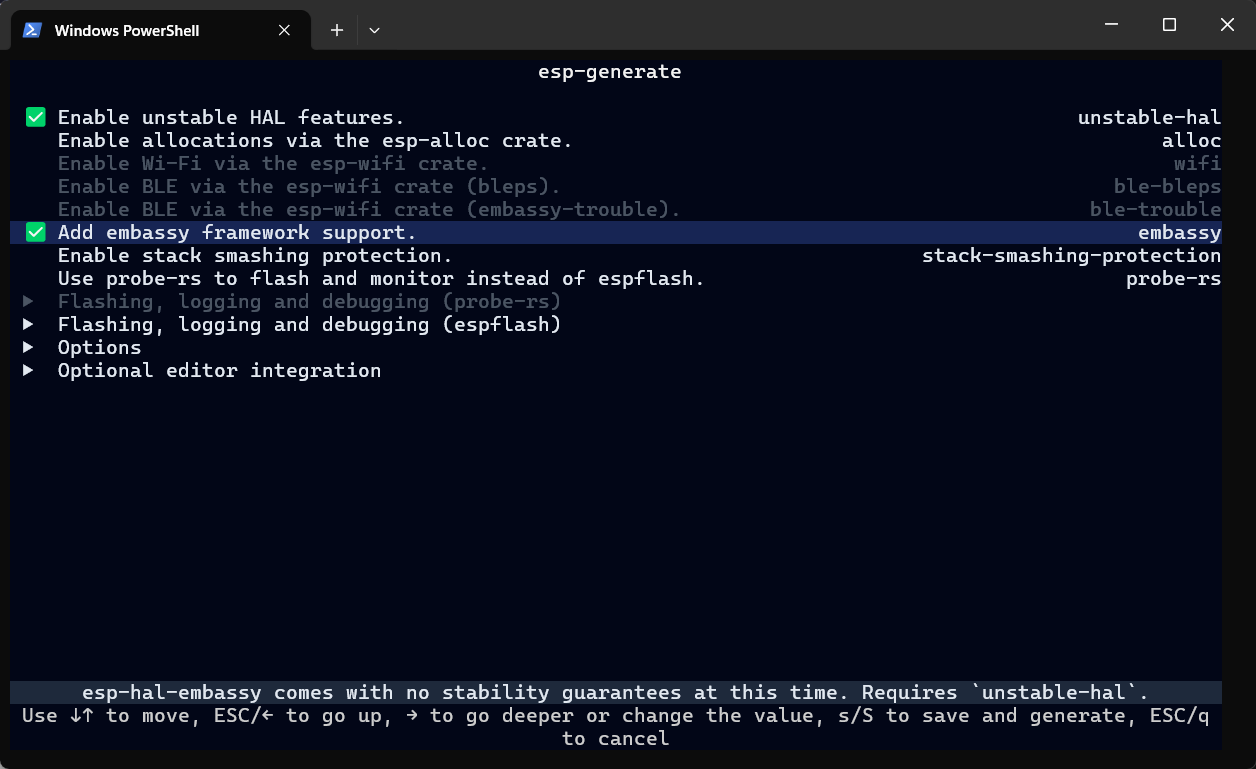

The terminal opens an interactive, GUI-like menu. Use the arrow keys to highlight a feature, then press Enter to select it; selected features show a ✅ marker.

A feature prefixed with [▶] contains child features. Highlight it with the arrows and press Enter to open its submenu.

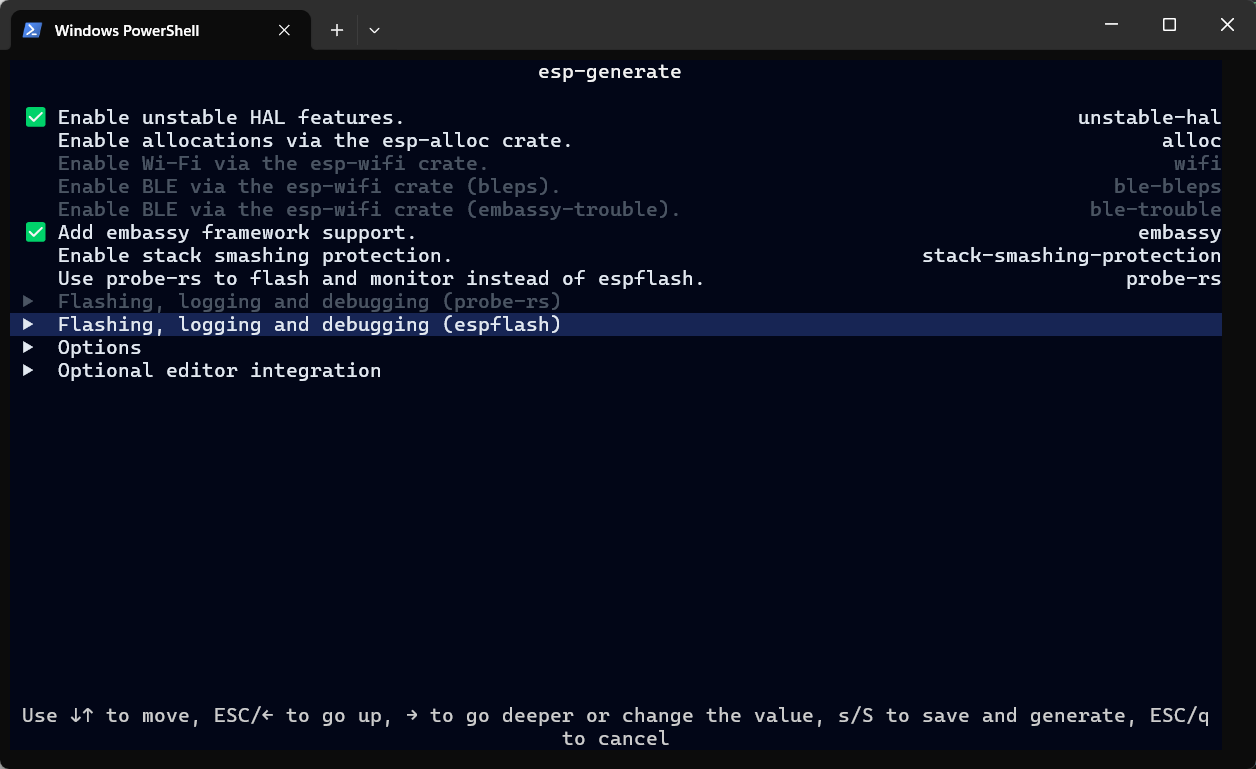

Highlight ▶ Flashing, logging and debugging (espflash) and press Enter to open its submenu.

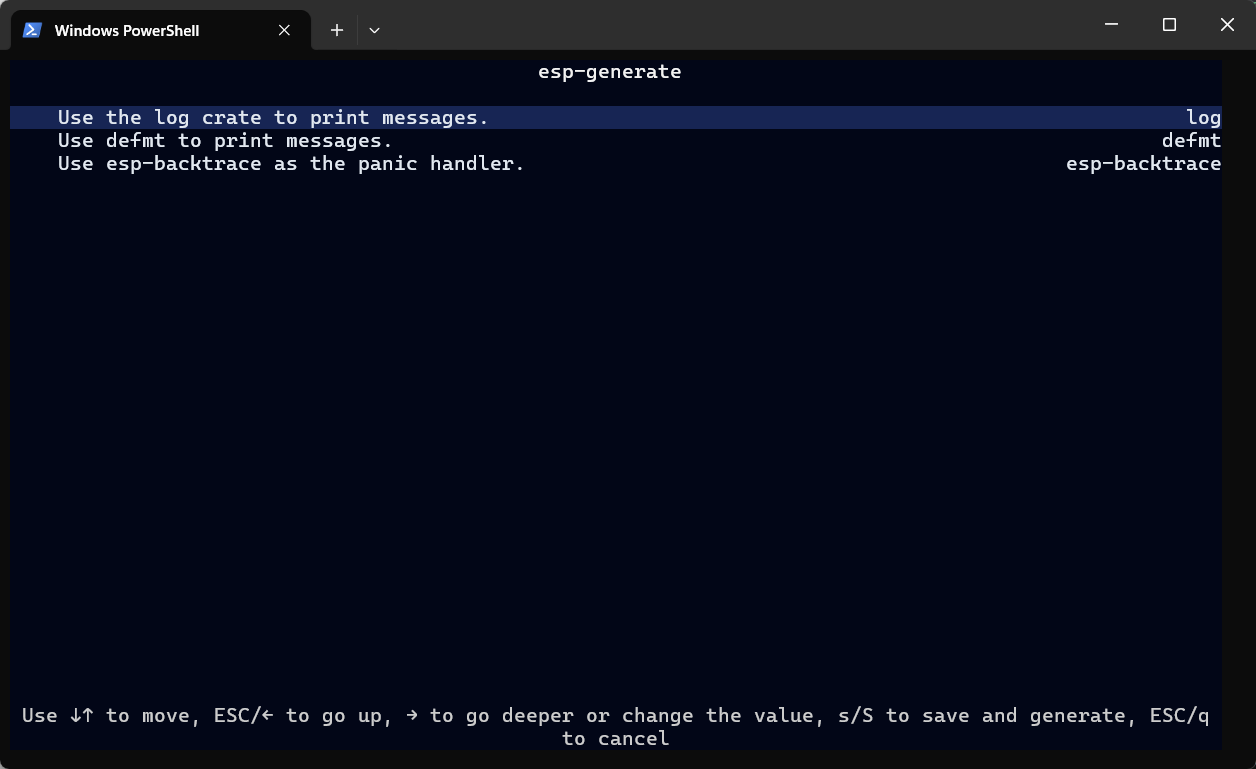

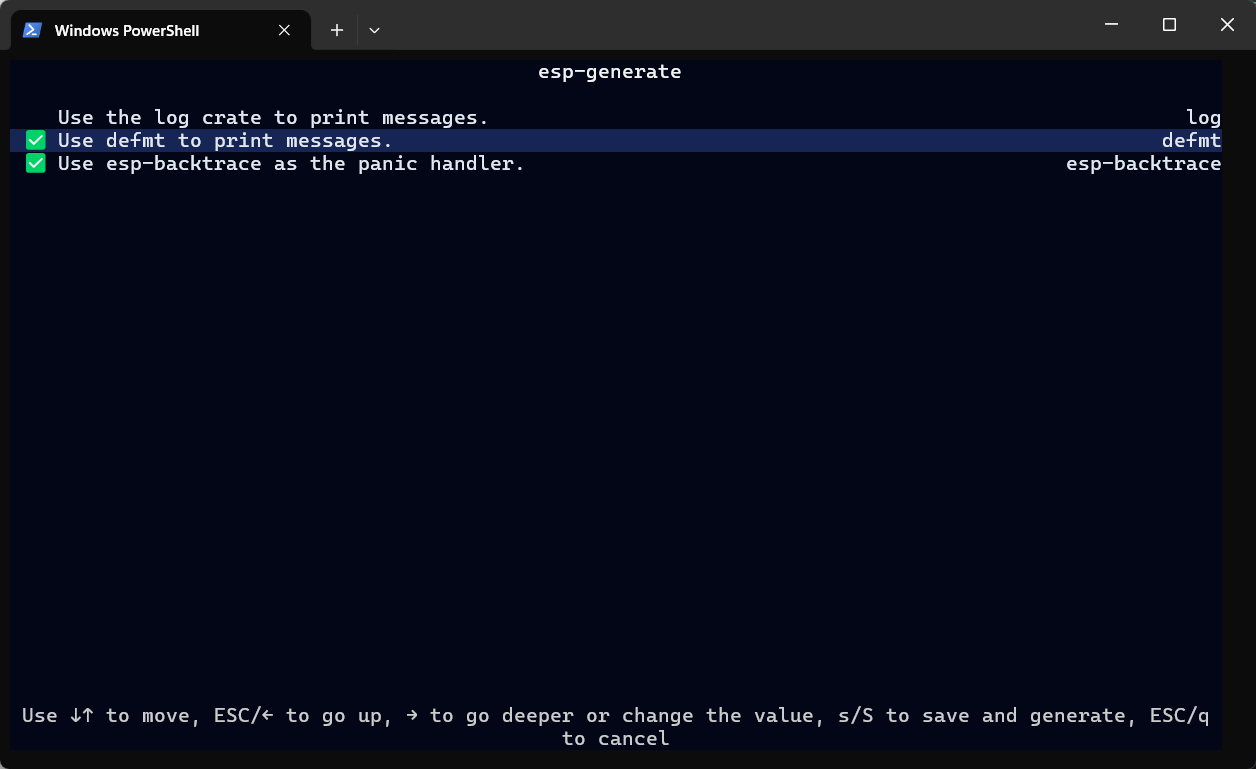

Select the features shown in the next screen; in this example, options 2 and 3 are selected.

Note: options 1 and 2 are mutually exclusive. Selecting both will cause a project error.

Press ESC to return to the main menu and continue enabling features.

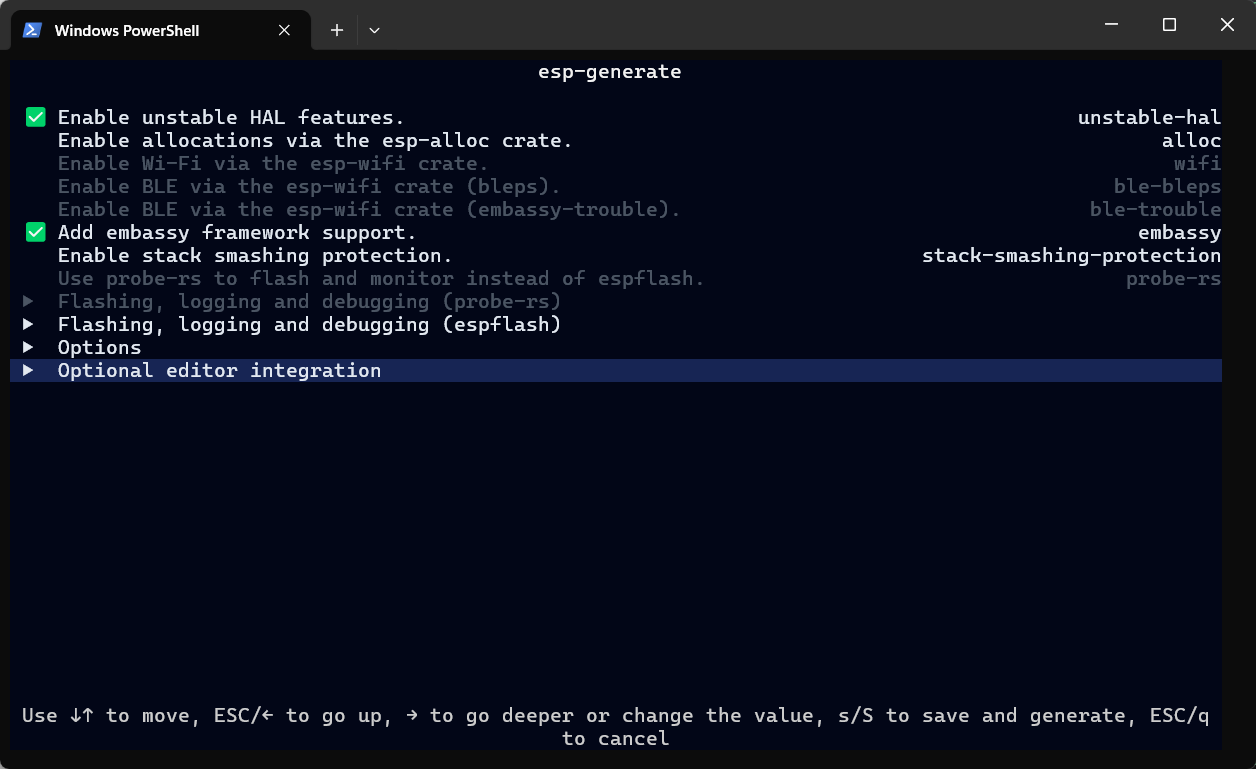

Highlight ▶ Optional editor integration and press Enter to open its submenu.

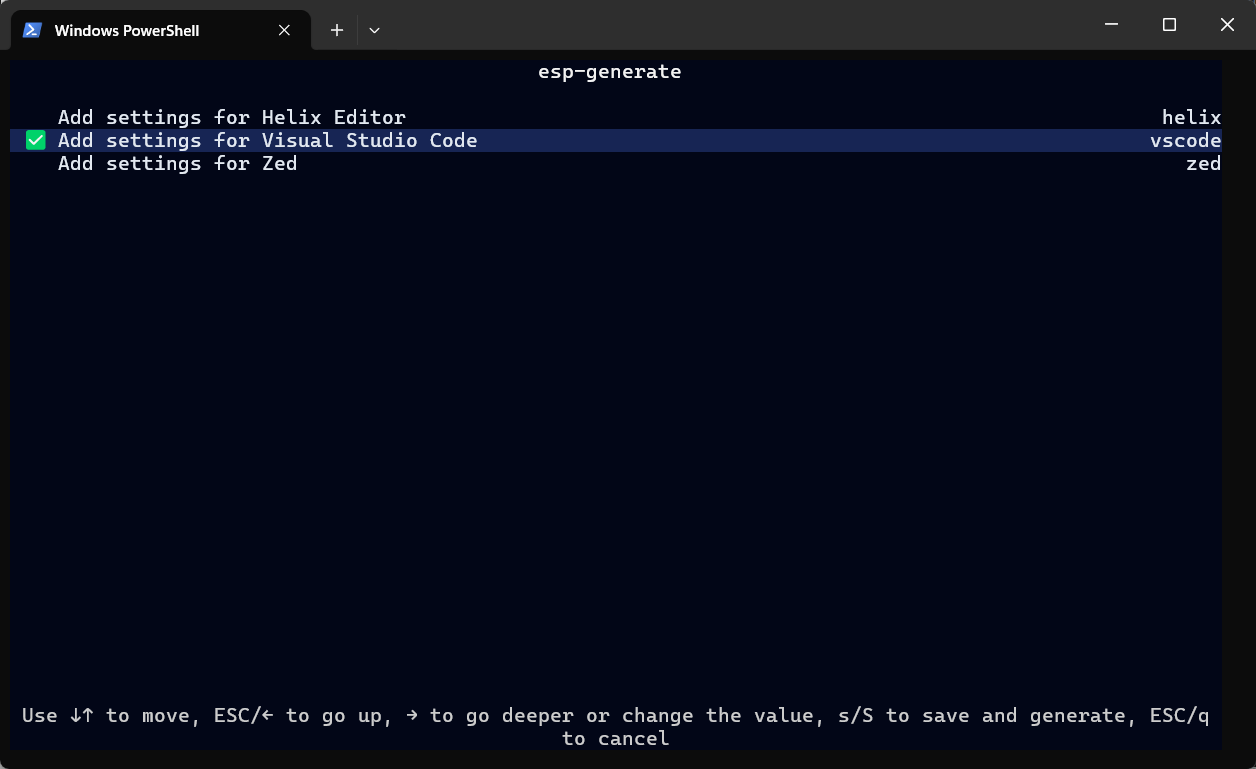

This menu selects your editor. The generator can configure the project for it and recommend useful extensions.

After selecting the editor feature, press ESC to return to the main menu.

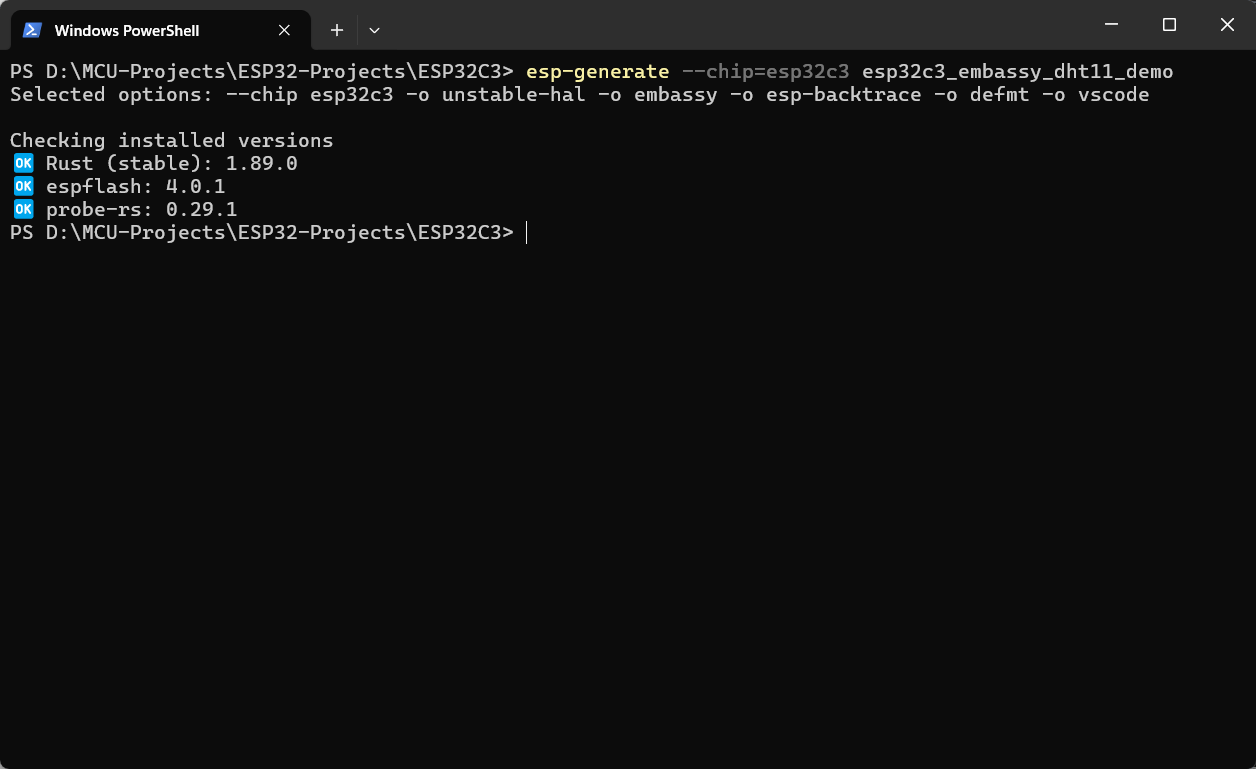

All features are now selected. Press S for Save to generate the project; the terminal will show its progress.

🆗 Rust (stable): 1.89.0
🆗 espflash: 4.0.1
🆗 probe-rs: 0.29.1

The template is ready. Future projects follow the same process, and tool versions may differ as the toolchain evolves.
